The Original C Channel 2.0 - 1/2" Leg Hidden Metal Support Bracing, For Live Edge Or Glue-Up Wood Tables

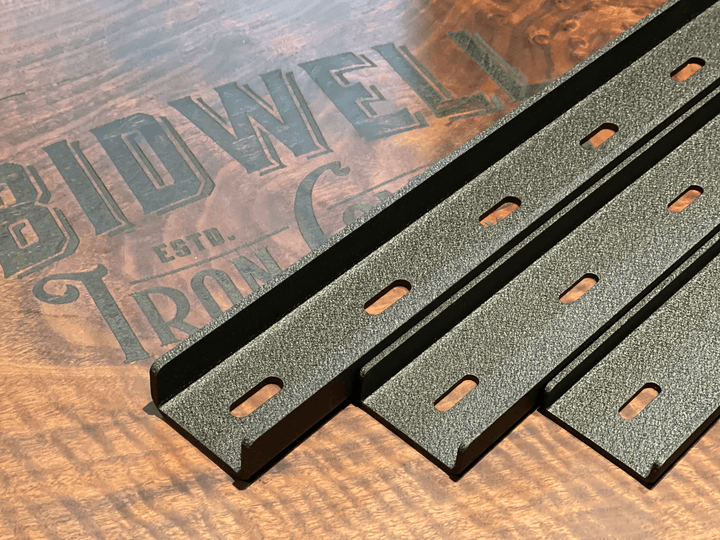

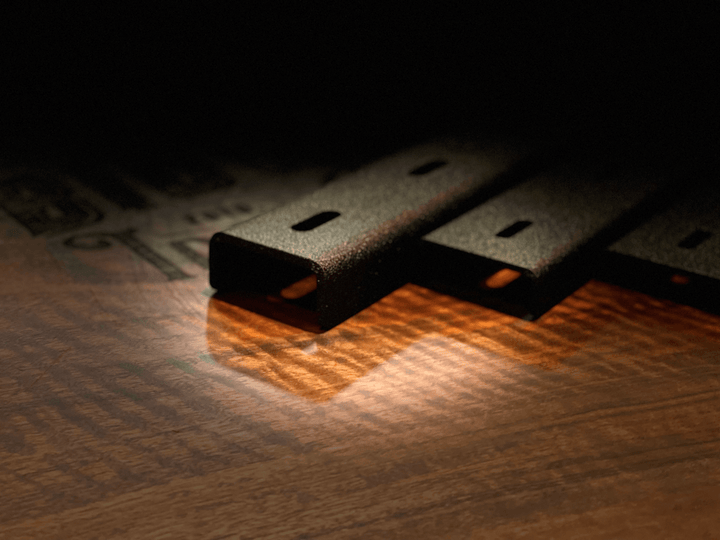

This C-Channel will add sturdiness and structure to your custom build and will help to protect the wood from warping, cupping and twisting. Slotted hardware/attachment holes in the center of the channel allow for natural wood movement. Laser cut out of 1/8” steel, sandblasted and powder coated in a black wrinkle texture finish.
There are two typical installation methods. The first is to inlay the channel so the channel is flush with wood. The second is to attach the channel so the legs are inlayed but the channel is sitting up on the wood.

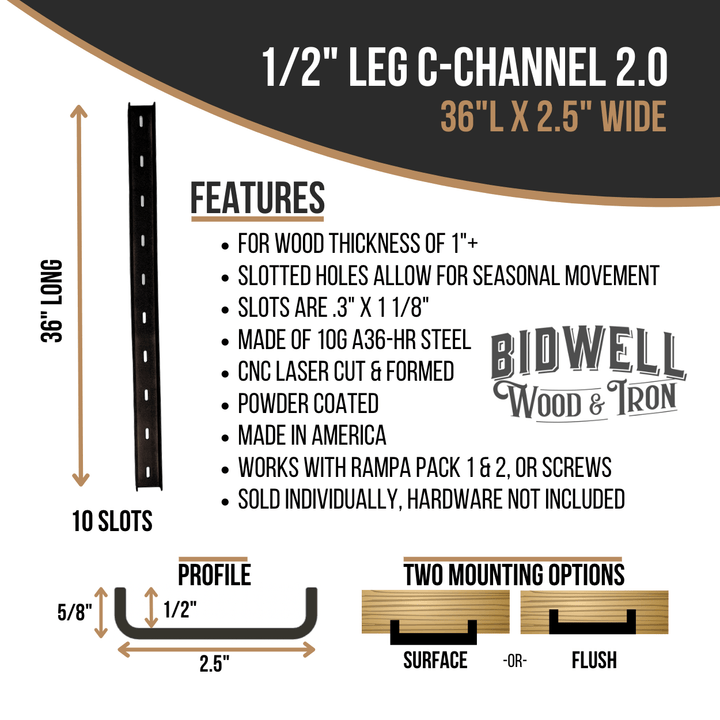

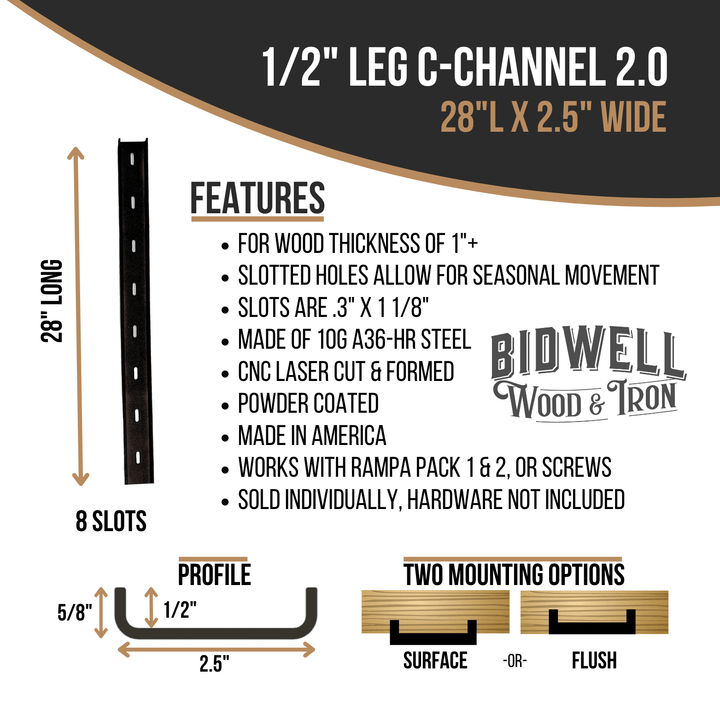

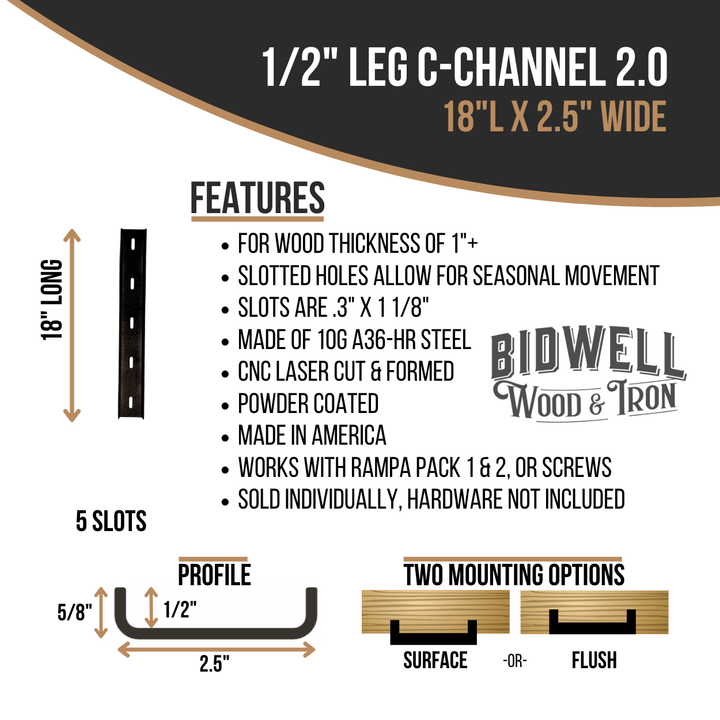

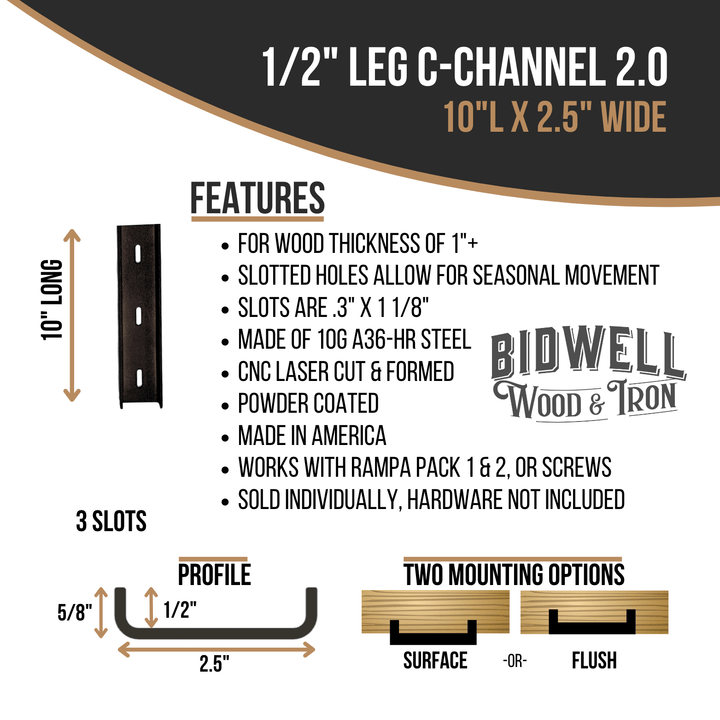

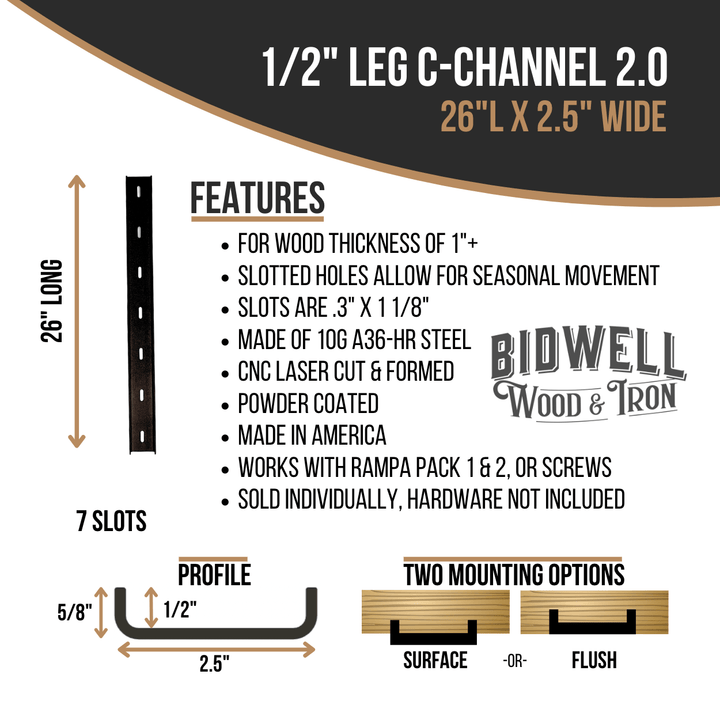

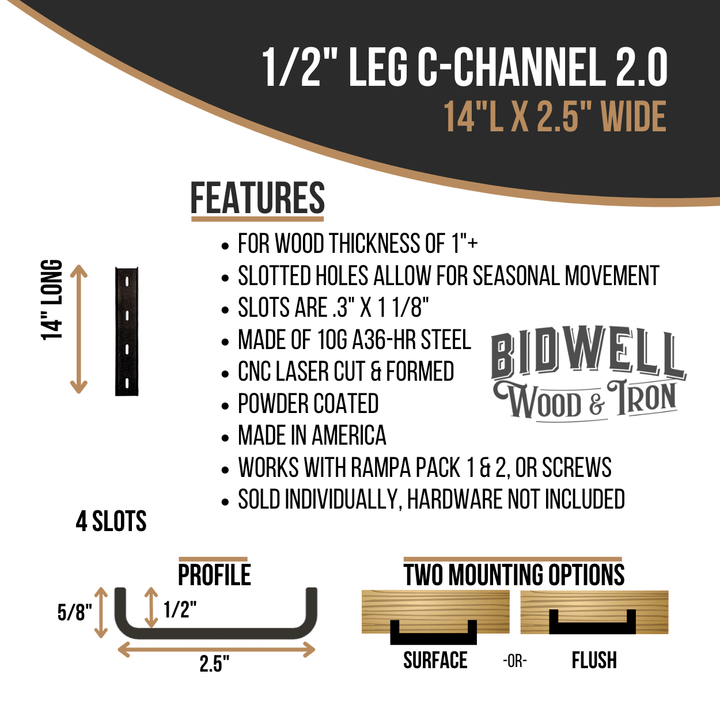

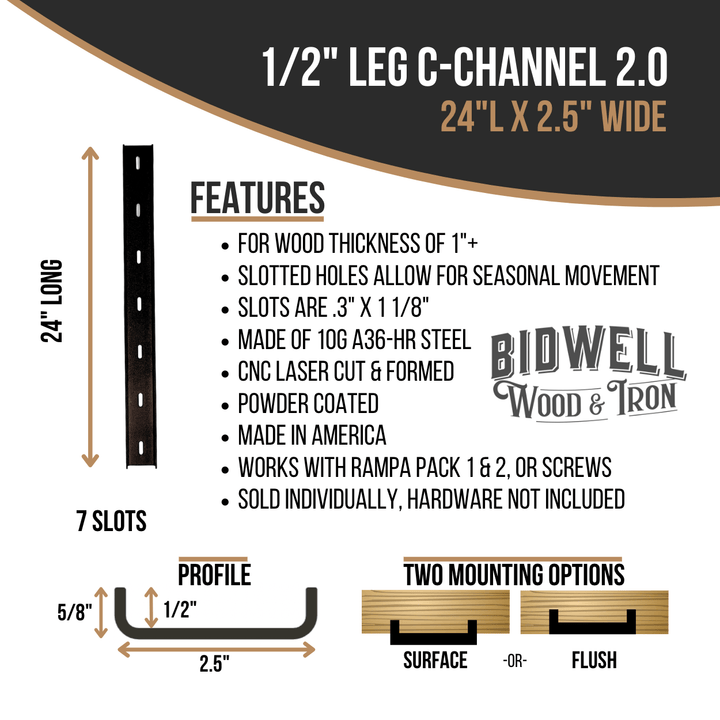

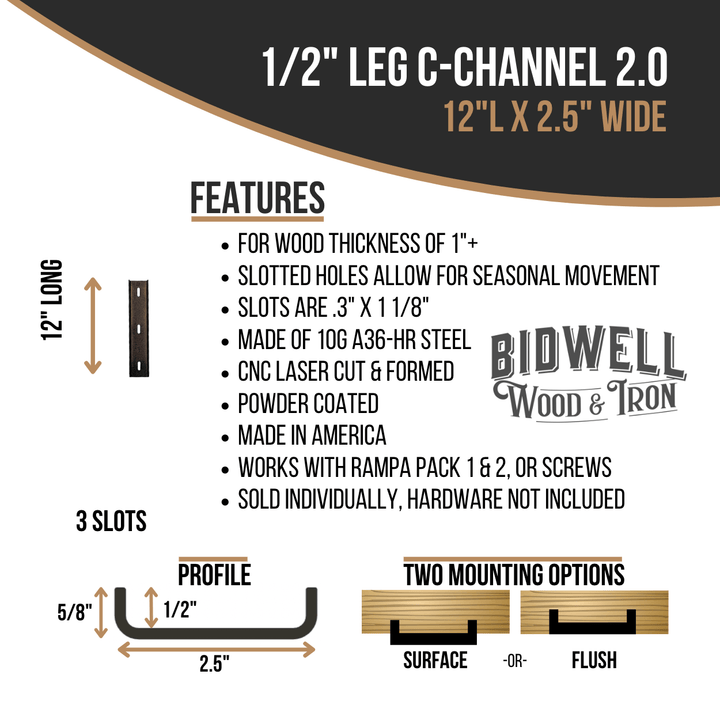

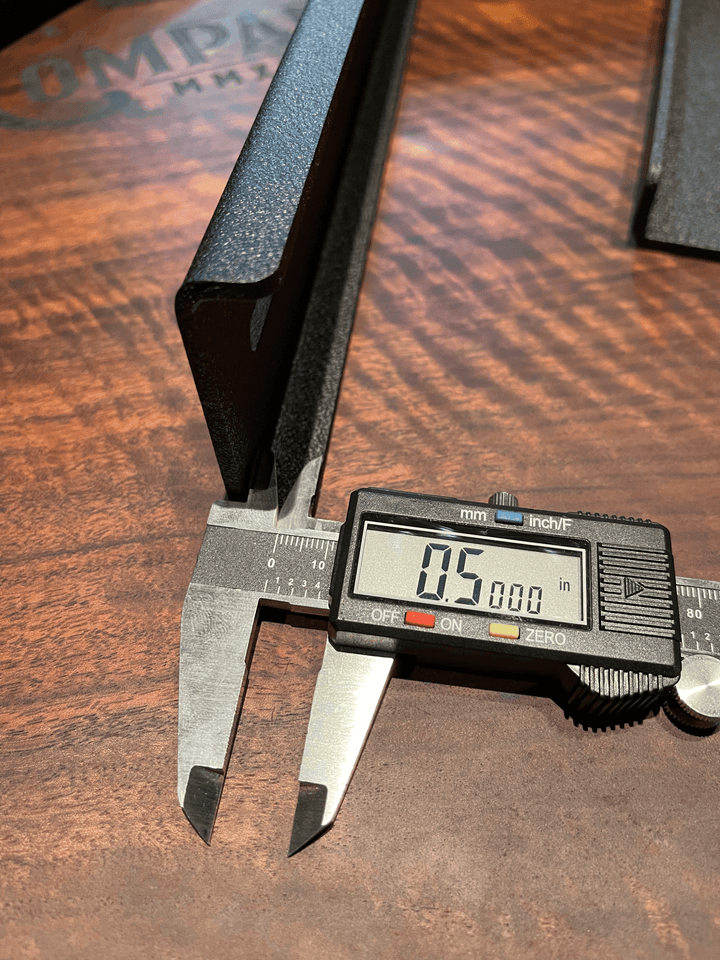

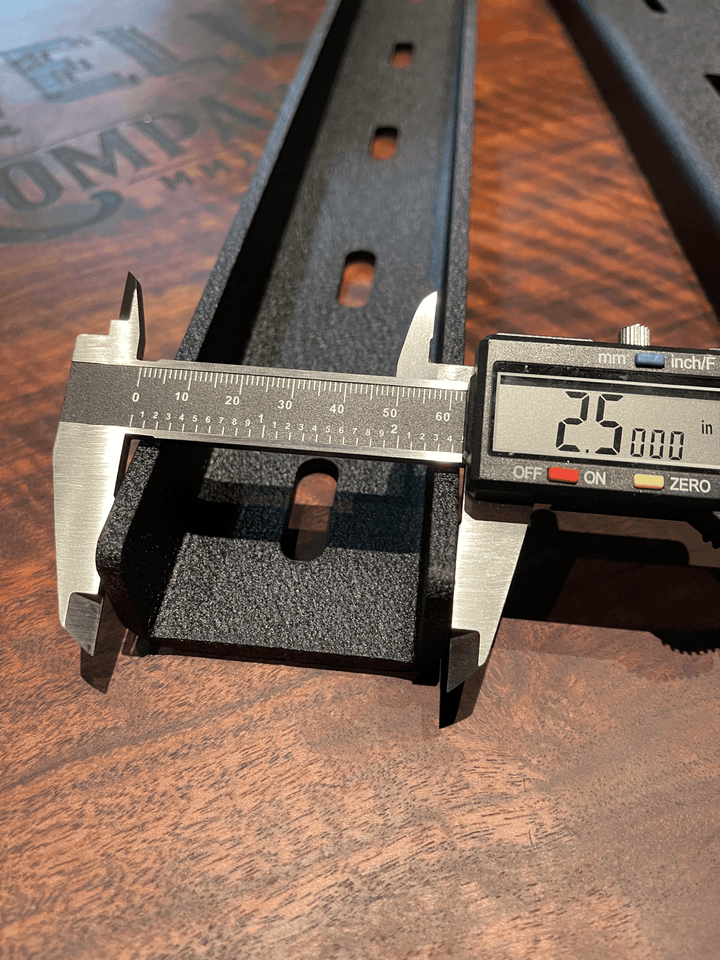

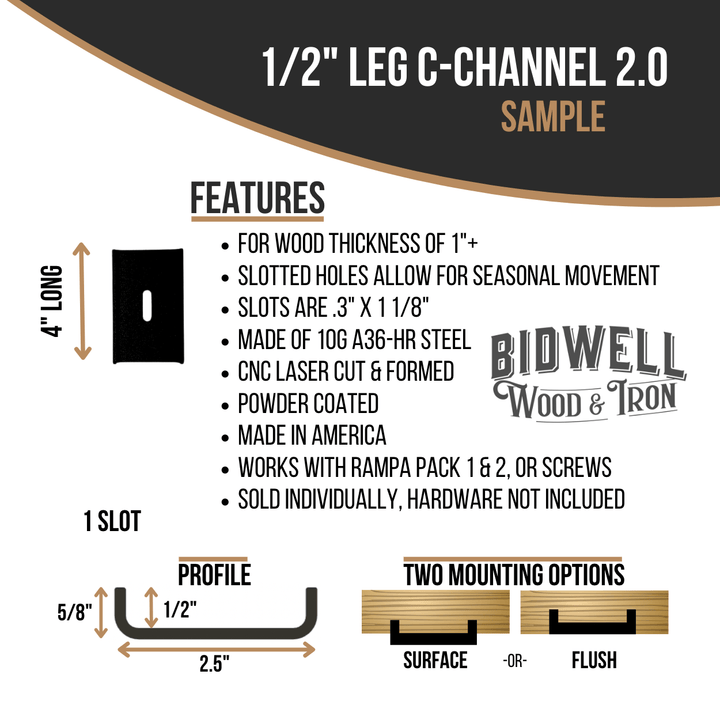

Channel 2.0’s leg length is 1/2” with an overall thickness of 5/8” including leg and channel. 2.5” wide, with .3” wide x 1” long slots. Recommended for 1”+ thick projects.
We recommend using a C-Channel length the leaves about 3-4” from each end of the wood, for example a a 44” slab would use a 36" channel.

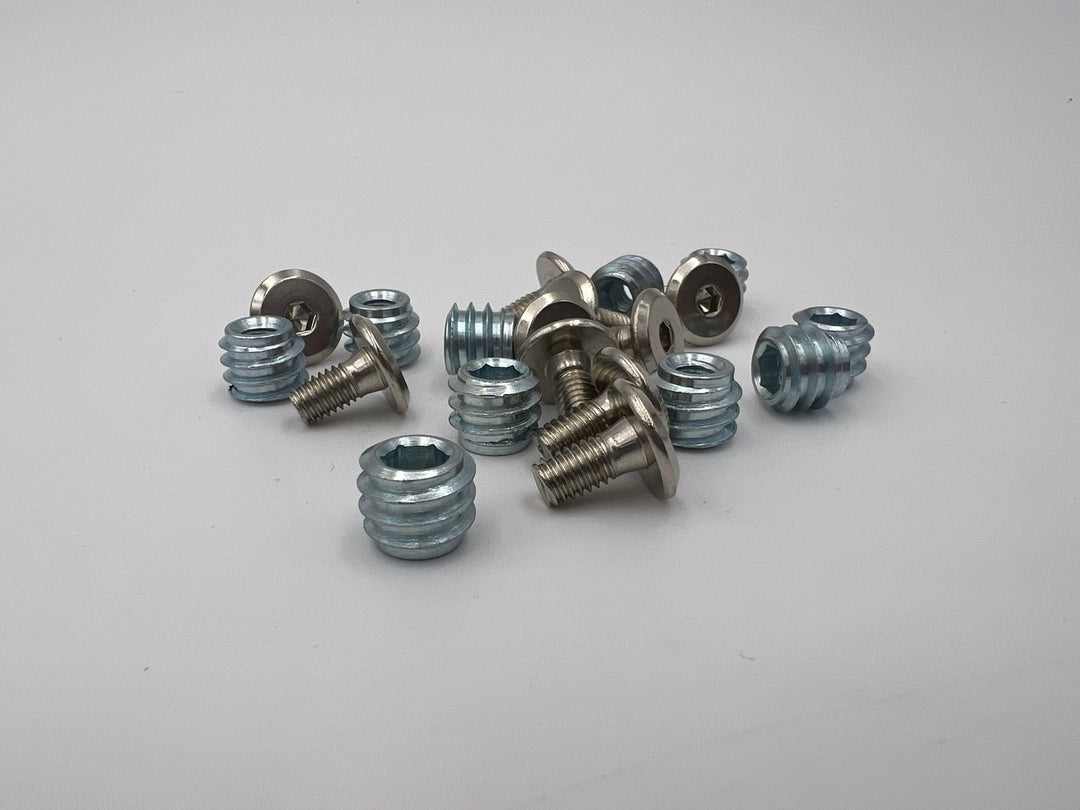

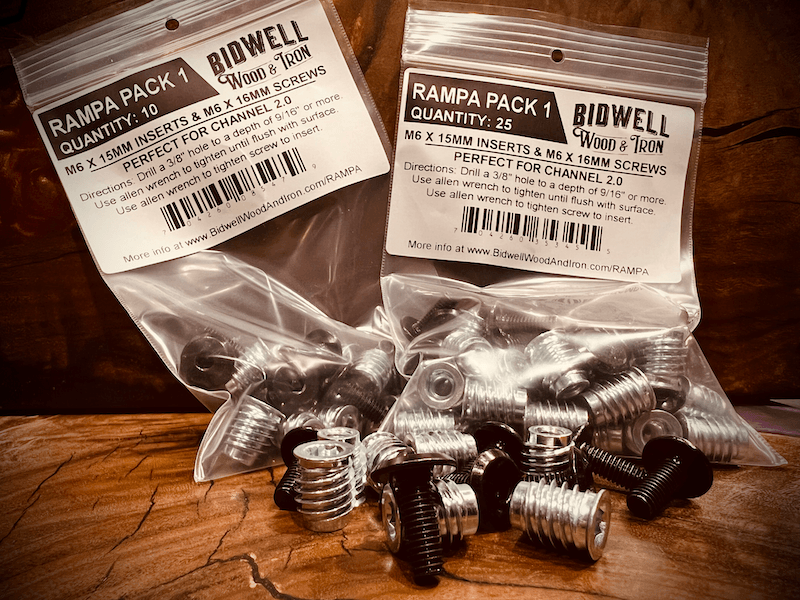

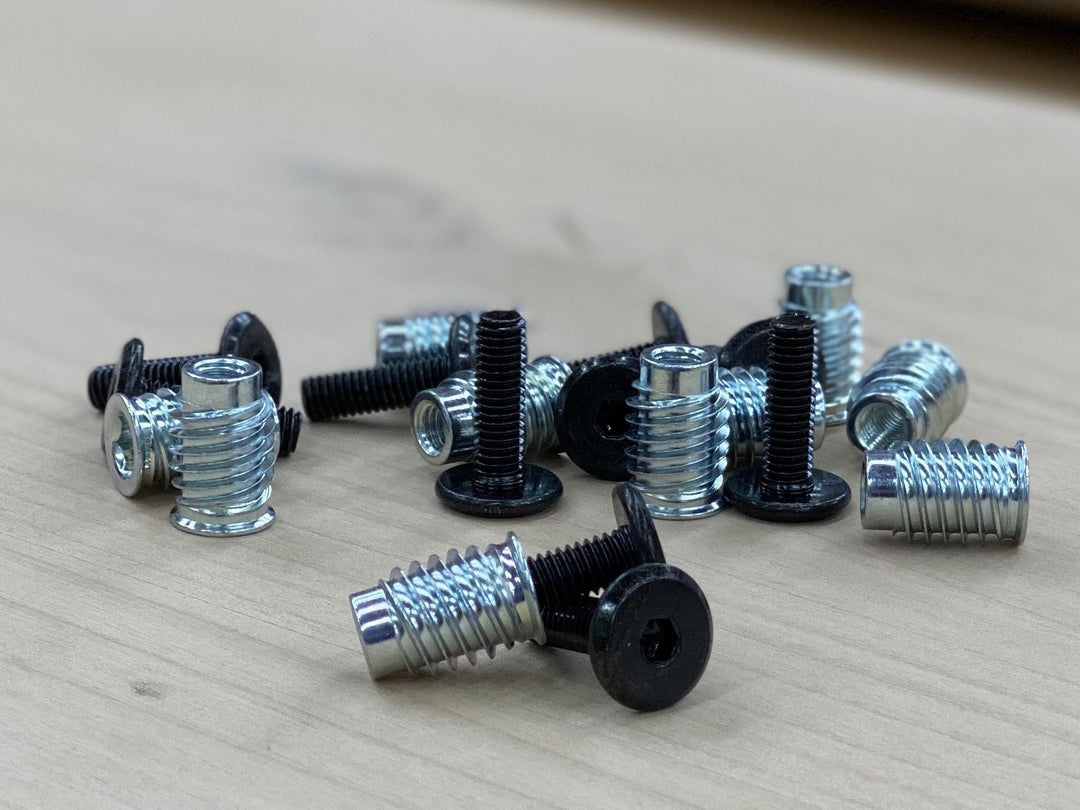

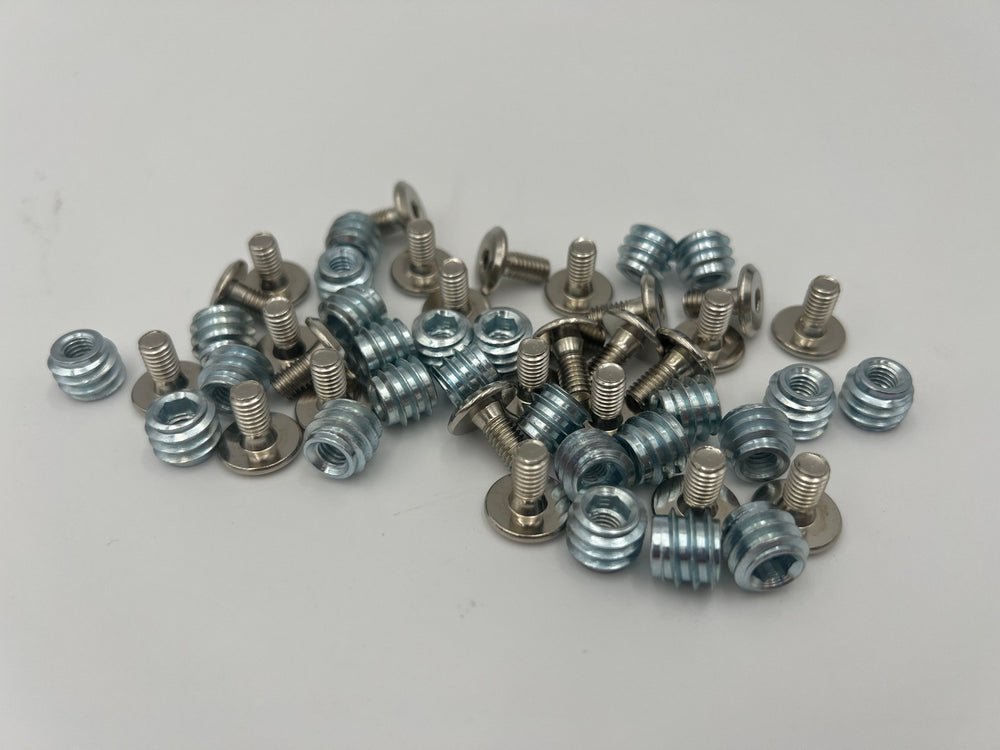

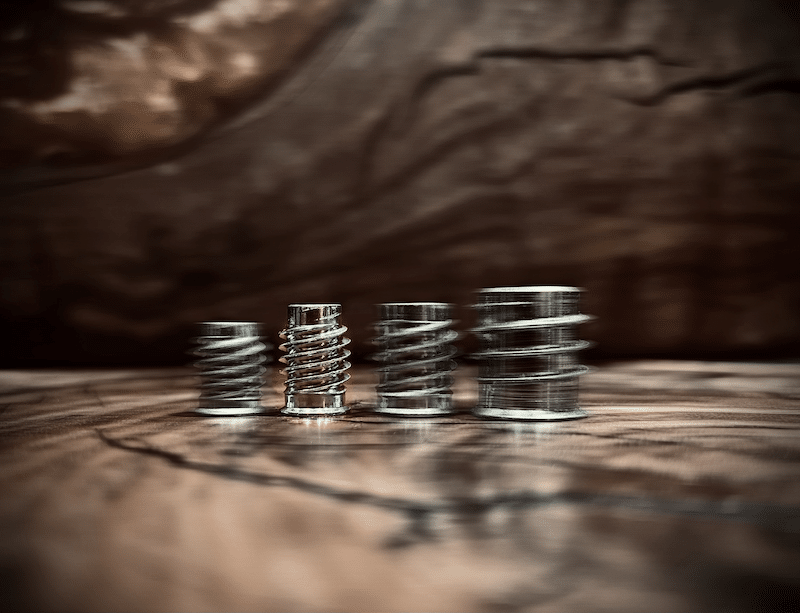

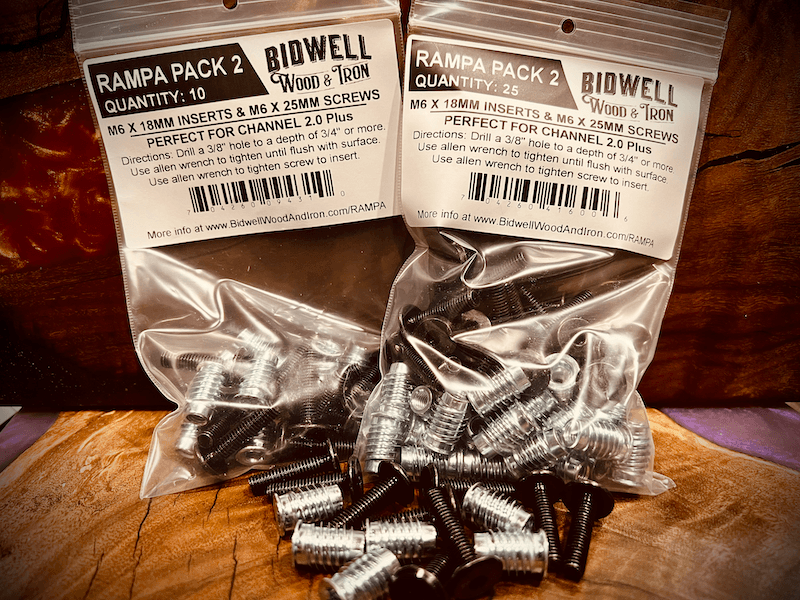

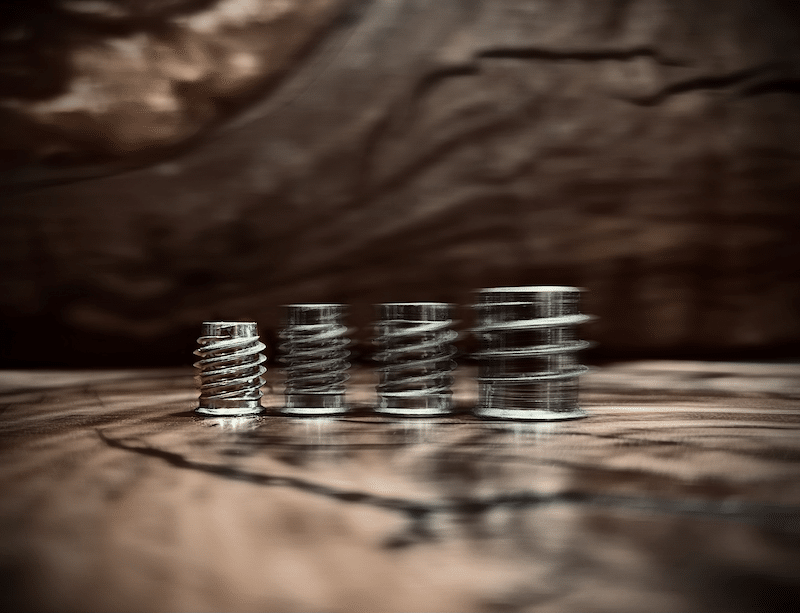

Designed for M6 RAMPA screws and inserts (RAMPA Pack 1) which are highly recommended for proper installation. Add them to your cart for easy installation!

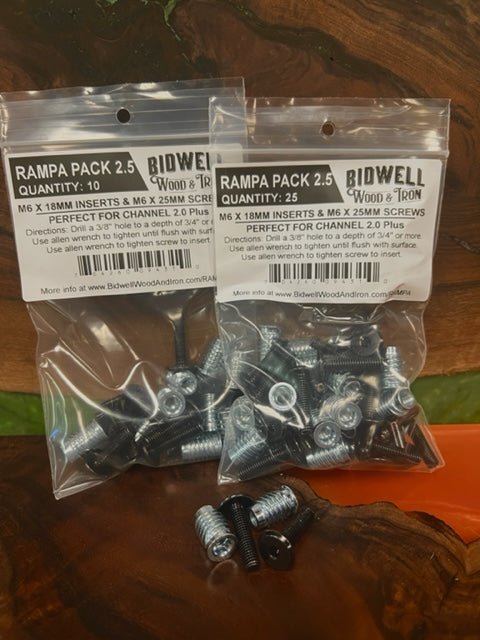

***NOTE RAMPA PACK 3 & 4 WILL NOT FIT CHANNEL 2.0 and 2.0Plus***
Note: C-channel does not make up for improperly dried or other issues with the wood.
Proudly made in house at Bidwell Wood & Iron.
Amount of hardware holes by length of channel. (Note quite often every other slot is used, in even number slot channels the two middle are used, then every other):

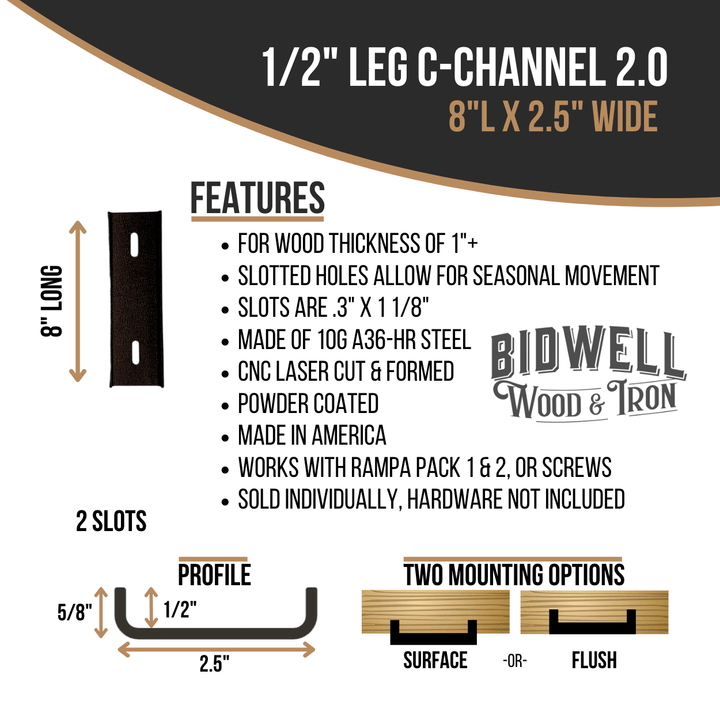

8"L = 2 slots/holes
12"L = 4 slots/holes
14"L = 4 slots/holes
18"L = 5 slots/holes

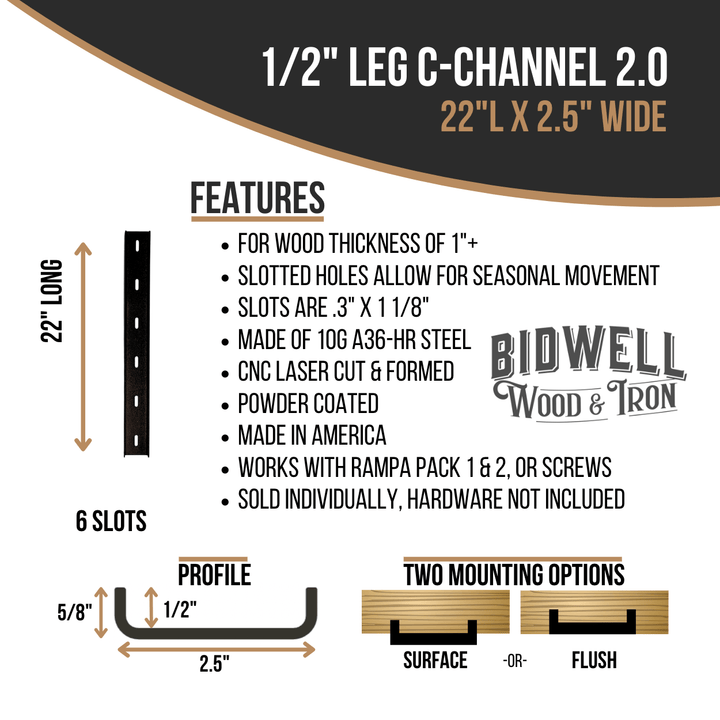

22"L = 6 slots/holes
26"L = 7 slots/holes

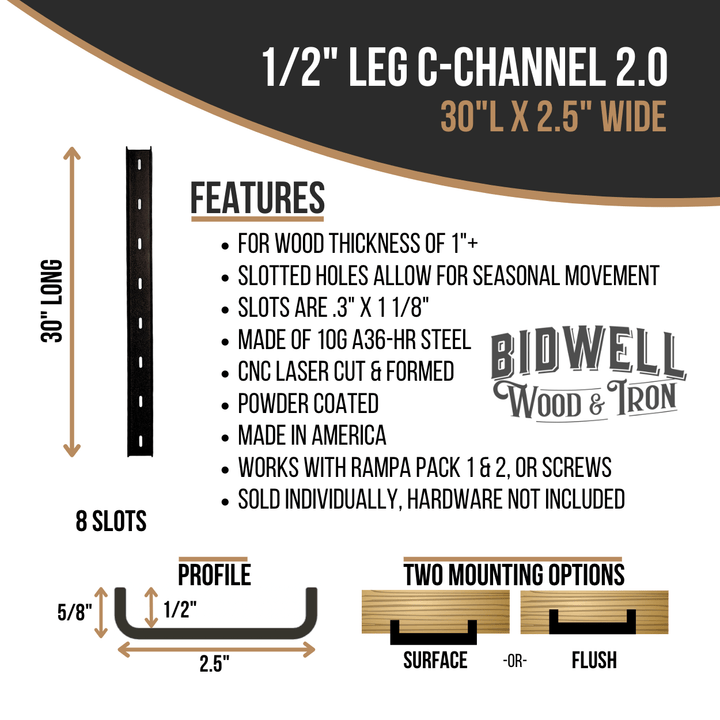

30"L = 8 slots/holes
32"L = 9 slots/holes
36"L = 10 slots/holes
